Products Description

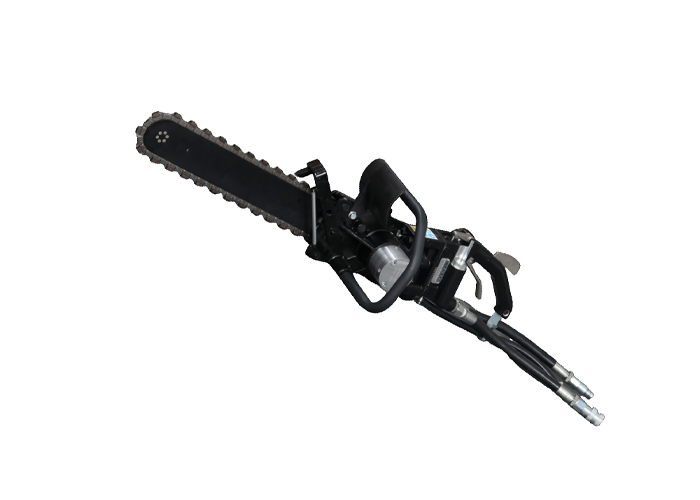

NewaLux Hydraulic diamond chainsaw driven by the power unit, coupled with a bar containing water channel
for chain lubrication, It makes cutting concrete and reinforced concrete and rock as well as metal
materials.
◎Features
◆Light weight and powerful function of Hydraulic diamond chainsaw
◆The handle and the guard matched with the body dynamics
◆With laser welded segments impregnated with diamond and water channel for chain lubrication
and cooling
◆Option different bars and chains for cutting depth 330mm~500mm, plunge cutting for window and
door openings, air conditioner cutouts, and notching or trimming and cutting square corners without
over-cut
◆Replace with the PowerGrit utility Saw for cutting ductile iron pipe, steel pipe and PVC pipe
| Type | DS11 |
| Weight(kg) | 11 |
| Bar size(mm) | 460(18inch) |
| Cutting depth (mm) | 460 |
| Output flow(lpm) | 26-34 |
| Operating pressure (bar) | 105-140 |
| Length(mm) | 970 |
| Width(mm) | 240 |
| Height(mm) | 265 |
